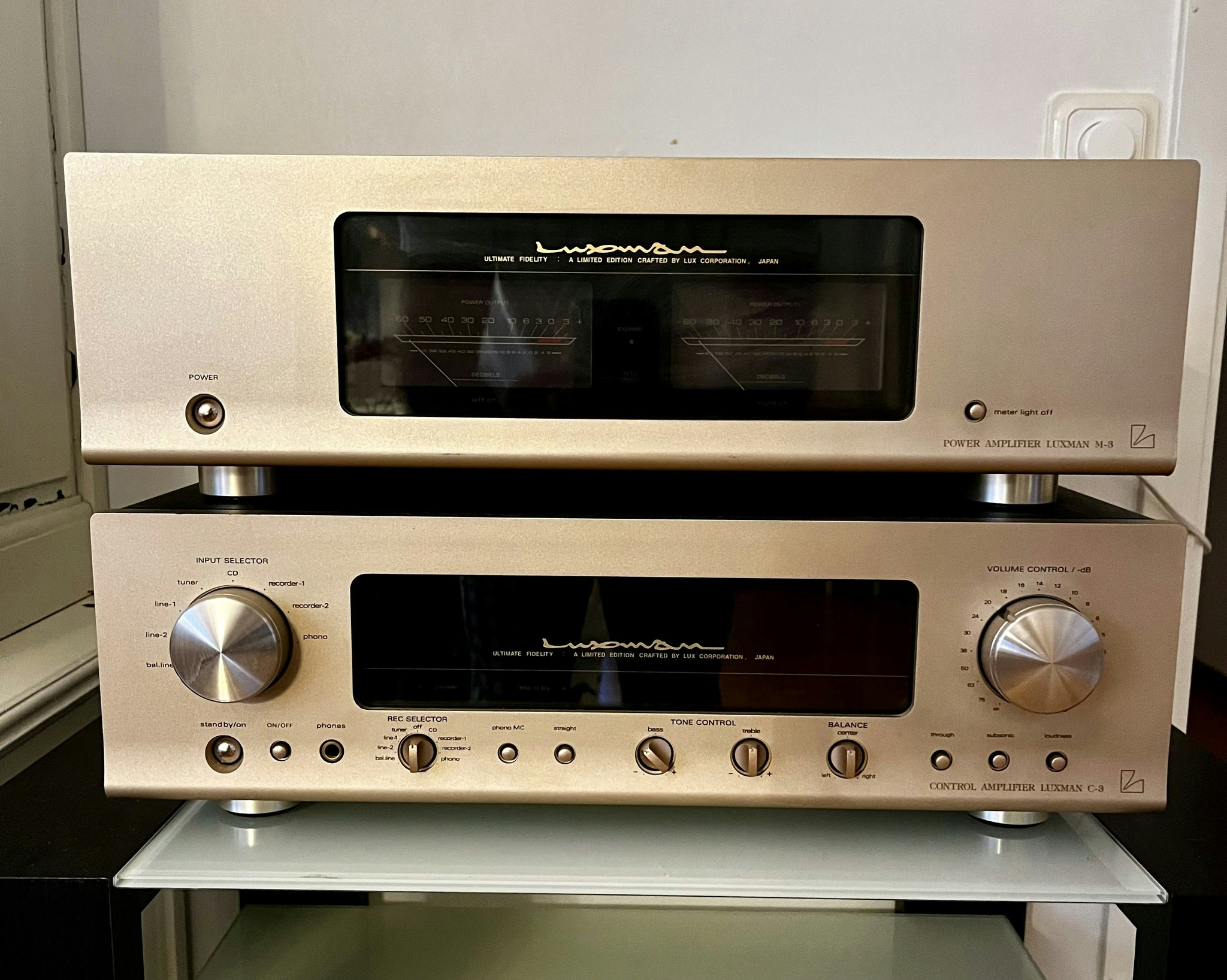

Luxman kombo för och slutsteg M3 samt C3 - begagnat i gott skick

Fantastisk för och slutstegskombo från Luxman made in Japan! Originalkartonger finns kvar och kan skickas. Akman Audio lämnar 3 månader på begagnat.

General M3

• Manufacturer: Luxman
• Model: M-3
• Type: Stereo power amplifier
• Made in: Japan
• Color: front aluminum gold, housing cover black
• Remote control: yes
• Power consumption: 240 W
• Dimensions: 467 x 151 x 415 mm
• Weight: 14.6 kg

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm: 2x 100W (1x 300W mono)
  • 4 Ohm: 2x 150W
• Total harmonic distortion:
  • 0.004% (1kHz / 8 Ohm)
  • 0.005% (20Hz - 20 kHz, 8 Ohm)

Special Features

• 2 large VU meters
• Input attenuator
• BTL switch for bridge operation (only for balanced input)
• Connector socket for remote switching
• Line Phase Sensor

General C3

• Manufacturer: Luxman
• Model: C-3
• Type: Stereo preamplifier
• Made in: Japan
• Color: front aluminum gold, housing cover black
• Remote control: yes
• Power consumption: 13 W
• Dimensions: 467 x 151 x 408 mm
• Weight: 10 kg
• Original price approx.: RRP: 3'998 DM

Number of inputs:
Unbalanced:
Phono MM: 2.5 mV, 47 kOhm.
Phono MC: 0,3 mV, 100 Ohm
Tuner: 150mV / 36kOhm CD: 150mV / 36kOhm Line: 150mV / 36kOhm

Tape: 150mV / 36kOhm
Balanced:

XLR Line: 150mV / 75kOhm
XLR Tape: 150mV / 75kOhm

Number of outputs:
Unbalanced:
Tape Rec 1, 2: 1V / 300 Ohm, max. 7.5V
Monitor 1, 2: 1V / 300 Ohm, max. 7,5V

Output 1, 2: 1V / 300 Ohm, max. 7.5V
Balanced:

Output 1, 2: 1V / 600 Ohm, max. 7.5V

Technical Data

Frequency response: 20Hz - 20'000 Hz, + 0 dB, - 0,1 dB
Distortion factor: <0.006%.
Signal-to-noise ratio:
Phono MM: 88 dB
Phono MC: 71 dB
High Level: 99 dB

Stereo Channel Separation:
Tone control:
Bass: switchable
100 Hz: ± 6dB
300 Hz: ± 8dB
Treble: switchable
3 kHz: ± 8dB
10 kHz: ± 6dB

Special Features

Connector sockets 1, 2 for remote switching, mains switch also switches on power amplifiers
Line Phase Sensor
